Catvision has installed more than 400 TRINETRA digital headends and upwards of a million STBs in India. In addition, Catvision has complete digital network experience – from headend to home. The TRINETRA digital headend is manufactured in India under a joint venture between Catvision and Unitron Group, Belgium. Catvision offers a complete range of digital headend equipment as per customer’s requirement. Catvision provides multiple network solutions – Headend, CAS, STB, HFC and FTTH. You can upgrade and grow your network with Catvision. The local manufacturing enables Catvision to provide life-time service support to your network.
Showing all 8 results
-
Luminato 4X4
Read moreLuminato 4X4
Teleste Luminato 4X4 is built on the renown Teleste Luminato heritage and forms the basis for a new generation of modular headend platform for CATV, OTT and/or IPTV delivery.
Luminato 4X4 is built on the renown Teleste Luminato heritage. Over the years, Teleste Luminato has proven to be one of the most reliable headend platforms and now it has been upgraded to exceed the future needs.
Teleste Luminato 4X4 represents our commitment to provide the best-of-breed in video headends for operators today as well as during and after the big step to distributed access networks. It has been designed with a built-in video engine to support operators when they take the shift to distributed access architecture. With its powerful and “ultra” dense edge QAM, the platform allows operators to freely scale up their video services when the need for channels like 4K increase. All the familiar Luminato features and modules are there and, in addition, we have equipped the platform with technologies that guarantee powerful and uninterrupted delivery of services when both networks and customer demands change and rise to new levels.
-
High Definition Encoder
Read moreHigh Definition Encoder
Model – EN8411
- Encodes 8 channels per encoder module. HD
- Logo insertion for watermarking.
- Maintains original/broadcast picture quality even at low bit rates.
- Low power consumption – less than 2 watts per channel.
- Online upgrades and support.
- Manufactured in India.
- Supports SD 480i60/576i50 and HD 720p50/60, 1080i50/60, 1080p25/30 video format.
- H.264 Main/High Profile & Level 3.0 to 4.2 video encoding in 8-bit YUV 4:2:0 format.
- MPEG-1 Layer 2, MPEG-2/MPEG-4 AAC-LC audio encoding.
- PSI/SI editing and insertion (PAT, PMT, SDT, NIT).
- IP output MPTS and 8 SPTS over UDP/RTP.
- GbE streaming port with protocol support ARP, ICMP, DHCP.
- Ethernet management port with protocol support ARP, ICMP, DHCP.
- Parameters setting Web-GUI. through
- Available stand alone 19″ 1U form (EN8411)
-
Luminato QAM module
Read moreLuminato QAM module
- Fully modular platform that grows with your business, from a compact 1 RU “headend in a box” to a multi-site, distributed headend solution
- Receivers: DVB-T/T2, DVB-S/S2, DVB-ASI, DVB-C and IP
- Outputs: QAM, COFDM, ASI and IP
- Two gigabit ethernet ports included as standard
- Platform’s small footprint enables efficient space usage
- Low power consumption enables longer module lifetime and lower energy costs. Energy efficiency also reduces site cooling requirements
- Internal switch for cable free interconnections and simplified maintenance
- Advanced DVB stream processing offers flexibility for channel creation and simplicity in multi-vendor environments
- The ability to customise content delivery to targeted subscriber groups
- Embedded DVB simulcrypt content protection
-

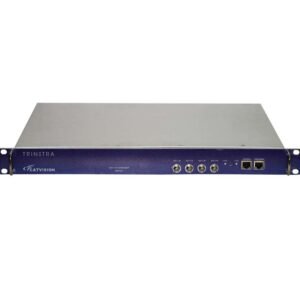

Multiplexer Decoder
Read moreMultiplexer Decoder
Model – 1R012CU
- Satellite Module with 8 satellite tuners.
- Dual slot conditional access module (CAM) interface to descramble multiple digital services.
- 4 MPTS or 64 SPTS streams can be distributed per module.
- GbE streaming port with protocol support ARP, ICMP, DHCP.
- Ethernet management port with protocol support ARP, ICMP, DHCP.
- Powerful re-multiplexing and processing of multiple MPEG-TS streams through the use of state-of-the-art FPGA technology.
- Prioritization of the services to better manage overflows.
- Online upgrades and support.
- Manufactured in India.
- Parameters setting through Web-GUI.
- Available in stand alone 19″ 1U form (IR012CU).
-
High Definition Encoder
Read moreHigh Definition Encoder
Model: CDH-8500-xxM4ENH-08/16/24
CDH8500-xxM4ENH channel encoder is our latest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 CVBS channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format. It can multiplex the 8 encoded TS to generate a MPTS and 8 SPTS output through GE output port. It adopts the slot structure with one device supporting maximum 3 CDH8500-xxM4ENH modules. Each module can work standalone. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, terrestrial digital TV, etc.
-
QAM Modulator
Read moreQAM Modulator
Model: CDH-9000-SCQMxx – 32/48/64
CDH9000-SCQMxx-32/48/64, IP QAM modulator is the latest generational Mux-scrambling-modulating all-in-one device developed by us. It has 32/48/64 multiplexing channels, 32/48/64 scrambling channels and 32/48/64 QAM (DVB-C) modulating channels, and supports maximum 512 IP input through the GE port and 16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
-
DVB-S2 Modulator
Read moreDVB-S2 Modulator
Model: CDH-9000-S2MOD
CDH9000-S2MOD is a high-performance modulator developed according to DVB-S2 standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2 RF output. BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel. With its high cost-effective design, Catvision DVB-S2 modulator is widely used for broadcasting, interactive services, news gathering and other broadband satellite applications.
-
Decoder Encoder
Read moreDecoder Encoder
Model: CDH7000-DECS2-4T-4M4ENH
CDH7000-DECS2-4T-4M4ENH is a multi-channel DVB-S/S2 receiving and HDMI encoding device. It is equipped with 4 DVBS/ S2 inputs, 4 HDMI inputs, 119 IP outputs through DATA port and 1 MPTS output via ASI port. With its compact design and powerful function, it’s widely used for integration of local content with DTH signals in hotels and hospitals.
