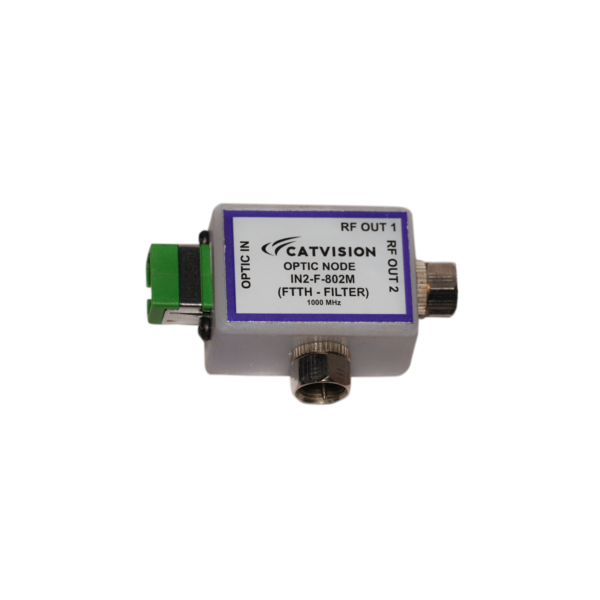

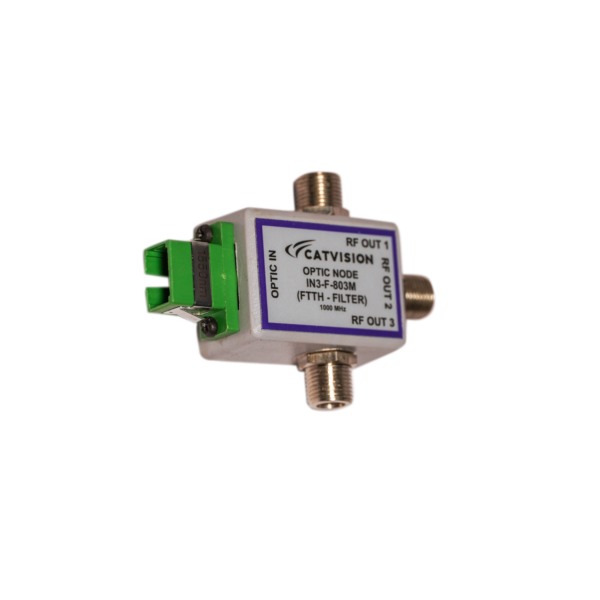

Optic Node (FTTH)

Output Options: 1 Output/ 2 Output/ 3 Output/ 4 Output

Catvision Introducing mini FTTH (Passive) Node. Which is specially design for Fiber to the Home Fiber to the Post Fiber to  the Building as per Indian Operating Condition. This FTTH gives you 72 dB RF output @ 0 dBm Optical Input.  It has the capability to convert even weak optic signals to a high quality RF signal. it’s small size It can be fixed even in the Joint Closure box also.


  • Frequency 40 ~ 1000 MHz
  • Designed for FTTH FTTP FTTB FTTX No Power required
  • Maximum Out Put Level 72 dBu 0 dBm input
  • Realize the analog or digital signal access to the home
  • Specially designed for All type of digital Set Top Box
Output 1, 2, 3, 4 Output
Connector Types SC/APC
Output Level 72dBμ
Input Level 0 dBm
Frequency 40 ~ 1000 MHz
Net Weight 0.15 Kg
Dimensions 4 x 2 x 2.5 cm



SKU: IN1-E-800 (Passive) Category:
