To complete the range of fibre distribution products are optic nodes and amplifiers in different configurations, and splitters & tap-offs in both outdoor and indoor housings.
Showing all 2 results
-
Optic Nodes
Read moreOptic Nodes
Model:
- IN2-M-1E-850 LE : Dual outputs, 860MHz, 50dBmv
- IN2-M-1E-850 LMD : Dual outputs, 860MHz, 50dBmv, LED Display
- IN4-M-1E-845 DBL : 4 outputs, 860MHz, 45dBmv, Battery backup
Catvision offers unique Optic Node -cum- Amplifiers for the application in HFC Networks. It has the capability to convert even weak optic signals to a high quality RF signal for further distribution in larger CATV network. It has been specially designed to use it either as a node or a stand-alone Amplifier. Optical input power indicator is provided for ease of network maintenance.
Features:
- Optical sensitivity better than -8 dBm
- Use as an Optic Node or Amplifier
- High RF output level
- High Voltage Surge Protection
- Excellent frequency response
- Aluminum heat sink for better heat dissipation & long life
- Mains cum Power pass
- Excellent C/N, CSO & CTB Characteristics
- MS powder coated housing
-

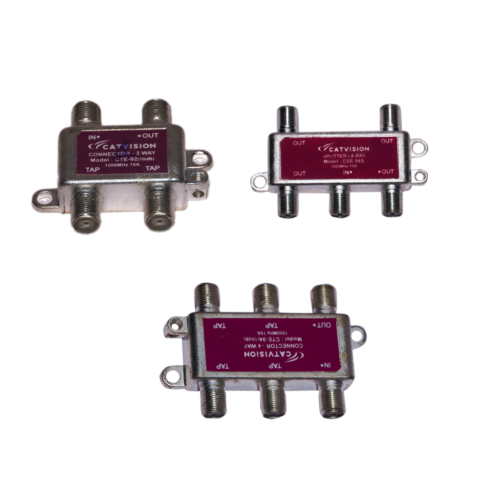

Splitter/Tapoff (Diecast)
Read moreSplitter/Tapoff (Diecast)
Model: CTE-91/CTE-92/CTE-93/CTE-94/CSE-92S/CSE-92P/CSE-93S/CSE-93P/CSE-94S/CSE-94P
- Freq.: 5 ~ 1000MHz
- Many Power Pass Options
- Linearity : + 0.5 dB
- Diecast Zinc housing
- Isolation : > 20dB
- Power Pass Current : 10 Amp
- Suitable for Analog and Digital CATV Networks
Specification:
Splitters Parameter Model Freq. Range (MHz) CSE-92 CSE-93 CSE-94 Insertion Loss (dB) 5 ~ 1000 3.5 ~ 4.0 5.7 ~ 6.5 6.8 ~8.0 Isolation (dB) 5 ~ 1000 > 25 >22 >25 Return Loss (dB) 5 ~ 1000 > 16 >16 >16 Tap-offs Parameter Model Freq. Range (MHz) CTE-91 CTE-92 CTE-93 CTE-94 Tap Loss (dB) 5 ~ 1000 11 12 12 12 Insertion Loss (dB) 5 ~ 1000 0.8 1.2 2.2 2.5 Tap-Tap Isolation (dB) 5 ~ 1000 >23 >23 >22 >22 Return Loss (dB) 5 ~ 1000 >16 >16 >16 >16
